A 'Park Flyer' with the ability to
SOAR
|
| |
|
SkyHawk
Now with CNC Laser cut formers!
'GMD Laser Kit'... ONLY $38.95
'GMD Short Kit'... ONLY $22.95
(plus S&H and 5%
Sales Tax on total for Wisconsin residents)

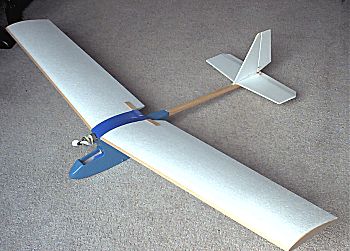

SkyHawk,
designed to be reminisent of the early days of 'pod and
boom' gliders. SkyHawk is great fun whether soaring with
the birds or doing 'touch and go's' in the wet grass! So
much FUN for so LITTLE COST.
The SkyHawk is easily hand launched and lands on it's
integral skid. Great fun in (and above!) the smallest of
fields.
58" WING SPAN for a DIRECT
DRIVE '400' MOTOR
|
| |
The 'GMD Laser Kit'
includes
|
all fuselage
formers CNC Laser
cut from birch & Liteply (see below)
|
the wing ready cut
from lightweight foam (no covering needed)
|
all wood included
with many parts pre-cut
|
GMD 'LiteSnake'
control snake inners and outers
|
wing
'strut' wire
|
2 sheet computer
drawn full size plan
|
comprehensive step-by-step
building instructions
|
|
| |
| The 'GMD Short Kit' includes |
the
wing ready cut from lightweight foam (no covering
needed)
|
GMD
'LiteSnake' control snake inners and outers
|
wing
'strut' wire
|
accurate
full size CAD plan & step-by-step building
instructions
|
|
| |
|
| |
| SPECIFICATIONS |
|
| wing span 58" (148cm) |
wing area 500sq.in (33sq.dm) |
| all up weight up to 20oz (566g)# |
wing loading up to 5.8oz/sq/ft
(17g/sq/dm) |
| direct drive '400' 7.2v
motor |
7 cell battery, Sanyo 700AA
etc. |
| 3 channel radio control
required |
rudder, elevator, throttle |
balsa/Liteply built
fuselage/tail
|
foam wings
|
|
| |
|
12th Oct. 2001. "Finally a calm
early evening... Hand launched glide test looked good, so
power up and away... well over 10 mins later she slides
into the grass at my feet. Then an 11 min. flight on 7x700mAh
'pencells' saw me circuiting at head height, fun!
The 7.2v Speed 400 gives ample power, climbing at half
throttle.
Want some fun?.... build one !"
|
| |
#weight
quoted is with 2 mini servos, mini receiver, 20 amp BEC
speed controller, 7x 700mAh AA cells, tissue
covered. Using 500AR cells, micro servos & Rx the
weight can be reduced significantly.
|
| |
|
| |
